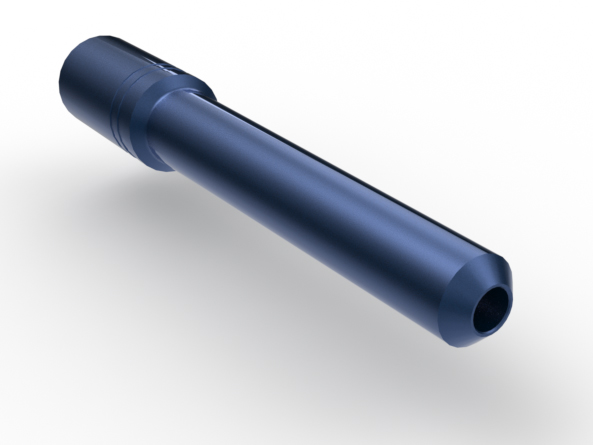

Plain Taper Tap type LMG
Application:
The designed to retrieve sleeves, latches or other objects having cylindrical opening in the top part. This plain taper tap catches a fish by pressing the taper tap into the opening of fishing object.
Construction:
The plain taper tap is a single piece construction with thread type top connection and cone fishing surface (1’ in the apex of a cone). The plain taper taps are manufactured from high grade alloy and forged steel.
When ordering, please specify:
- Assembly name and nominal size;
- Version (LH or RH);
- Type connecting thread if other than stated in the table;
- Fishing surface diameter (min/max) if other than stated in the table;
- Fishing surface obliquity if other than 1’
| Assembly name and size | OD | ID | Min catching diameter | Max catching diameter | Length | Connecting thread | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | ft | |||
| LMG 18-29 | 46,0 | 1 13/16 | 4,8 | 3/16 | 18,3 | 23/32 | 29,4 | 15/32 | 900 | 2,97 | З-38 | NC 13 |
| LMG 24-38 | 46,0 | 1 13/16 | 7,9 | 5/16 | 23,8 | 15/16 | 38,1 | 11/ 2 | 1075 | 3,55 | З-38 | NC 13 |
| LMG 30-44 | 46,0 | 1 13/16 | 9,5 | 3/ 8 | 30,2 | 13/16 | 44,5 | 13/ 4 | 1075 | 3,55 | З-38 | NC 13 |
| LMG 40-54 | 79,4 | 31/ 8 | 11,9 | 15/32 | 40,5 | 1 19/32 | 54,0 | 21/ 8 | 1075 | 3,55 | З-66 | 2 3/8 Reg |
| LMG 46-60 | 79,4 | 31/ 8 | 25,4 | 1 | 46,0 | 1 13/16 | 60,3 | 23/ 8 | 1075 | 3,55 | З-66 | 2 3/8 Reg |
| LMG 54-68 | 79,4 | 31/ 8 | 25,4 | 1 | 54,0 | 21/ 8 | 68,3 | 2 11/16 | 1095 | 3,61 | З-66 | 2 3/8 Reg |
| LMG 62-76 | 79,4 | 31/ 8 | 25,4 | 1 | 61,9 | 27/16 | 76,2 | 3 | 1095 | 3,61 | З-66 | 2 3/8 Reg |
| LMG 70-84 | 85,7 | 33/ 8 | 31,8 | 11/ 4 | 69,9 | 23/ 4 | 84,1 | 35/16 | 1100 | 3,63 | З-73 | NC 26 |
| LMG 76-90 | 95,3 | 33/ 4 | 31,8 | 11/ 4 | 76,2 | 3 | 90,5 | 39/16 | 1092 | 3,60 | З-76 | 2 7/8 Reg |
| LMG 84-98 | 108,0 | 41/ 4 | 38,1 | 11/ 2 | 84,1 | 35/16 | 98,4 | 37/ 8 | 1160 | 3,83 | З-88 | 3 1/2 Reg |
| LMG 90-104 | 108,0 | 41/ 4 | 31,8 | 11/ 4 | 90,5 | 39/16 | 104,0 | 43/32 | 1100 | 3,63 | З-88 | 3 1/2 Reg |
| LMG 96-110 | 139,7 | 51/ 2 | 43,7 | 1 23/32 | 96,0 | 3 25/32 | 109,5 | 45/16 | 1160 | 3,83 | З-117 | 4 1/2 Reg |
| LMG 104-118 | 139,7 | 51/ 2 | 57,9 | 29/32 | 104,0 | 43/32 | 118,3 | 4 21/32 | 1100 | 3,63 | З-117 | 4 1/2 Reg |
| LMG 108-126 | 139,7 | 51/ 2 | 57,9 | 29/32 | 108,0 | 41/ 4 | 126,2 | 4 31/32 | 1380 | 4,55 | З-117 | 4 1/2 Reg |
| LMG 118-136 | 139,7 | 51/ 2 | 57,9 | 29/32 | 118,3 | 4 21/32 | 135,7 | 5 11/32 | 1380 | 4,55 | З-117 | 4 1/2 Reg |
| LMG 126-144 | 161,9 | 63/ 8 | 57,9 | 29/32 | 126,2 | 4 31/32 | 144,5 | 5 11/16 | 1380 | 4,55 | З-133 | NC 50 |
| LMG 140-158 | 161,9 | 63/ 8 | 95,3 | 33/ 4 | 139,7 | 51/ 2 | 158,0 | 67/32 | 1380 | 4,55 | З-133 | NC 50 |
| LMG 148-166 | 166,7 | 69/16 | 95,3 | 33/ 4 | 147,6 | 5 13/16 | 165,9 | 6 17/32 | 1380 | 4,55 | З-133 | NC 50 |
| LMG 156-174 | 196,9 | 73/ 4 | 88,9 | 31/ 2 | 156,4 | 65/32 | 173,8 | 6 27/32 | 1450 | 4,79 | З-152 | 6 5/8 Reg |
| LMG 164-182 | 196,9 | 73/ 4 | 88,9 | 31/ 2 | 164,3 | 6 15/32 | 181,8 | 75/32 | 1450 | 4,79 | З-152 | 6 5/8 Reg |
| LMG 172-190 | 196,9 | 73/ 4 | 88,9 | 31/ 2 | 172,2 | 6 25/32 | 189,7 | 7 15/32 | 1450 | 4,79 | З-152 | 6 5/8 Reg |
| LMG 180-198 | 203,2 | 8 | 127,0 | 5 | 180,2 | 73/32 | 198,4 | 7 13/16 | 1480 | 4,88 | З-171 | 6 5/8 FH |
| LMG 185-203 | 203,2 | 8 | 127,0 | 5 | 184,9 | 79/32 | 203,2 | 8 | 1480 | 4,88 | З-171 | 6 5/8 FH |
It is possible to produce any sizes not listed in the table
