Taper Taps type MES and MSZ
Application
The STS Taper Taps are designed to retrieve members from the oil, gas and exploratory well bores. This Taper Tap catches a fish by screwing in tubing box thread (type MES ) and drilling pipes locks (type MSZ ).
Construction

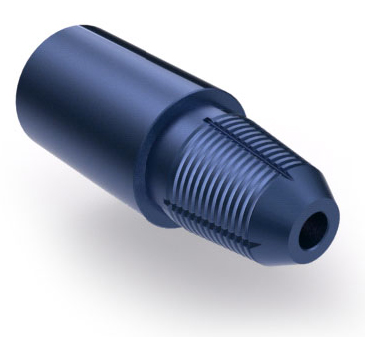

The Taper Taps are designed like a single piece construction with thread type top connection and external fishing thread type bottom, having tubing shape thread or lock thread with tightness. Taper taps are manufactured from high grade alloy and forged steel. Thread surface is cemented and hardened.
When ordering, please specify:
- Assembly name and nominal size;
- Version (LH or RH);
- Type connecting thread if other than stated in the table;
Type MES
| Assembly name and size | OD | Сatching thread | Length | Load capacity | Connecting thread | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | ft | кН | lbf | |||||
| MES-48 | 54,0 | 2 1/8 | НКТ-48 | non-upset tubing 1 7/8 | 180 | 0,59 | 150 | 34000 | З-44 | NC 16 |
| MES-В48 | 54,0 | 2 1/8 | ВНКТ-48 | upset tubing 1 7/8 | 230 | 0,76 | 270 | 61000 | З-44 | NC 16 |
| MES-60 | 95,3 | 3 3/4 | НКТ-60 | non-upset tubing 2 3/8 | 270 | 0,89 | 250 | 56000 | З-76 | 2 7/8 Reg |
| MES-В60 | 95,3 | 3 3/4 | ВНКТ-60 | upset tubing 2 3/8 | 280 | 0,92 | 430 | 97000 | З-76 | 2 7/8 Reg |
| MES-73 | 95,3 | 3 3/4 | НКТ-73 | non-upset tubing 2 7/8 | 280 | 0,92 | 370 | 83000 | З-76 | 2 7/8 Reg |
| MES-В73 | 95,3 | 3 3/4 | ВНКТ-73 | upset tubing 2 7/8 | 280 | 0,92 | 570 | 128000 | З-76 | 2 7/8 Reg |
| MES-89 | 108,0 | 4 1/4 | НКТ-89 | non-upset tubing 3 1/2 | 290 | 0,96 | 550 | 124000 | З-88 | 3 1/2 Reg |
| MES-В89 | 108,0 | 4 1/4 | ВНКТ-89 | upset tubing 3 1/2 | 280 | 0,92 | 820 | 184000 | З-88 | 3 1/2 Reg |
| MES-102 | 120,7 | 4 3/4 | НКТ-102 | non-upset tubing 4 | 295 | 0,97 | 580 | 130000 | З-88 | 3 1/2 Reg |
| MES-В102 | 120,7 | 4 3/4 | ВНКТ-102 | upset tubing 4 | 295 | 0,97 | 950 | 214000 | З-88 | 3 1/2 Reg |
| MES-114 | 133,4 | 5 1/4 | НКТ-114 | non-upset tubing 4 1/2 | 300 | 0,99 | 720 | 162000 | З-102 | NC 38 |
| MES-В114 | 133,4 | 5 1/4 | ВНКТ-114 | upset tubing 4 1/2 | 300 | 0,99 | 1160 | 261000 | З-102 | NC 38 |
Type MSZ
| Assembly name and size | OD | Сatching thread | Length | Load capacity | Connecting thread | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | ft | кН | lbf | |||||
| MSZ-66 | 79,4 | 3 1/8 | З-66 | 2 3/8 Reg | 280 | 0,92 | 1280 | 288000 | З-66 | 2 3/8 Reg |
| MSZ-73 | 85,7 | 3 3/8 | З-73 | NC 26 | 280 | 0,92 | 1120 | 252000 | З-73 | NC 26 |
| MSZ-76 | 95,3 | 3 3/4 | З-76 | 2 7/8 Reg | 280 | 0,92 | 1600 | 360000 | З-76 | 2 7/8 Reg |
| MSZ-86 | 104,8 | 4 1/8 | З-86 | NC 31 | 280 | 0,92 | 1420 | 319000 | З-86 | NC 31 |
| MSZ-88 | 108,0 | 4 1/4 | З-88 | 3 1/2 Reg | 280 | 0,92 | 2560 | 576000 | З-88 | 3 1/2 Reg |
| MSZ-102 | 120,7 | 4 3/4 | З-102 | NC 38 | 335 | 1,11 | 2000 | 450000 | З-102 | NC 38 |
| MSZ-117 | 139,7 | 5 1/2 | З-117 | 4 1/2 Reg | 330 | 1,09 | 4480 | 1007000 | З-117 | 4 1/2 Reg |
| MSZ-133 | 161,9 | 6 3/8 | З-133 | NC 50 | 400 | 1,32 | 3360 | 755000 | З-133 | NC 50 |
| MSZ-147 | 177,8 | 7 | З-147 | 5 1/2 FH | 400 | 1,32 | 4240 | 953000 | З-147 | 5 1/2 FH |
| MSZ-152 | 196,9 | 7 3/4 | З-152 | 6 5/8 Reg | 400 | 1,32 | 6640 | 1493000 | З-152 | 6 5/8 Reg |
| MSZ-177 | 225,4 | 8 7/8 | З-177 | 7 5/8 Reg | 450 | 1,49 | 8510 | 1913000 | З-177 | 7 5/8 Reg |
It is possible to produce any sizes not listed in the table
