Wireline spears Type UTS
Application:
The Wireline Spears type UTS is a tool designed to retrieve wire line and wire roe from oil, gas and exploratory well bores.
Construction

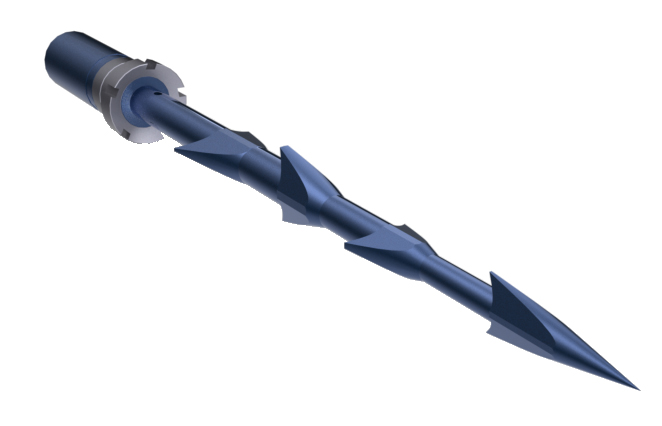

The Wireline Spear type UTS consists of a body, a sub and a guide. The body is manufactured from structural alloy steel. Three pairs of hooks with gradually increasing size of catching are made on the body. The top part of the body has side holes for washing/.
When ordering, please specify:
- Assembly name and nominal size
- Version (LH or RH);
- Type connecting thread if other than stated in the table;
- Guide diameter if other than stated in the table;
It is recommended to order:
- 2 (two) guides of each required size;
- 4 sets of spare hooks and axes.
| Assembly name and size | Guide OD | Connecting thread | Load capacity | Length | ||||
|---|---|---|---|---|---|---|---|---|
| мм | inch | кН | lbf | мм | ft | |||
| UTS 24-56 | 55,6 | 2,1875 | М42*2 | М42*2 | 80 | 36000 | 742,5 | 2,44 |
| UTS 40-102 | 101,6 | 4 | З-76 | 2 7/8 Reg | 160 | 90000 | 985 | 3,23 |
| UTS 50-120 | 119,9 | 4 23/32 | З-76 | 2 7/8 Reg | 400 | 90000 | 1190 | 3,90 |
| UTS 50-133 | 133,4 | 5 1/4 | З-76 | 2 7/8 Reg | 400 | 90000 | 1190 | 3,90 |
| UTS 50-140 | 139,7 | 5 1/2 | З-76 | 2 7/8 Reg | 400 | 90000 | 1190 | 3,90 |
| UTS 50-160 | 160,3 | 6 5/16 | З-76 | 2 7/8 Reg | 400 | 90000 | 1190 | 3,90 |
| UTS 65-190 | 190,5 | 7 1/2 | З-88 | 3 1/2 Reg | 600 | 135000 | 1860 | 6,10 |
| UTS 65-210 | 209,6 | 8 1/4 | З-88 | 3 1/2 Reg | 600 | 135000 | 1860 | 6,10 |
It is possible to produce any sizes not listed in the table
